Wireshark packet capture not seeing VLAN tags with Windows 7

While setting up a Lab based on GNS3 and some real world switches I faced an issue with Windows 7 removing 802.1q VLAN tags when using the integrated Intel network card.

There is some information on Wireshark and Intel homepage to solve it:

http://wiki.wireshark.org/CaptureSetup/VLAN

http://www.intel.com/support/network/sb/cs-005897.htm

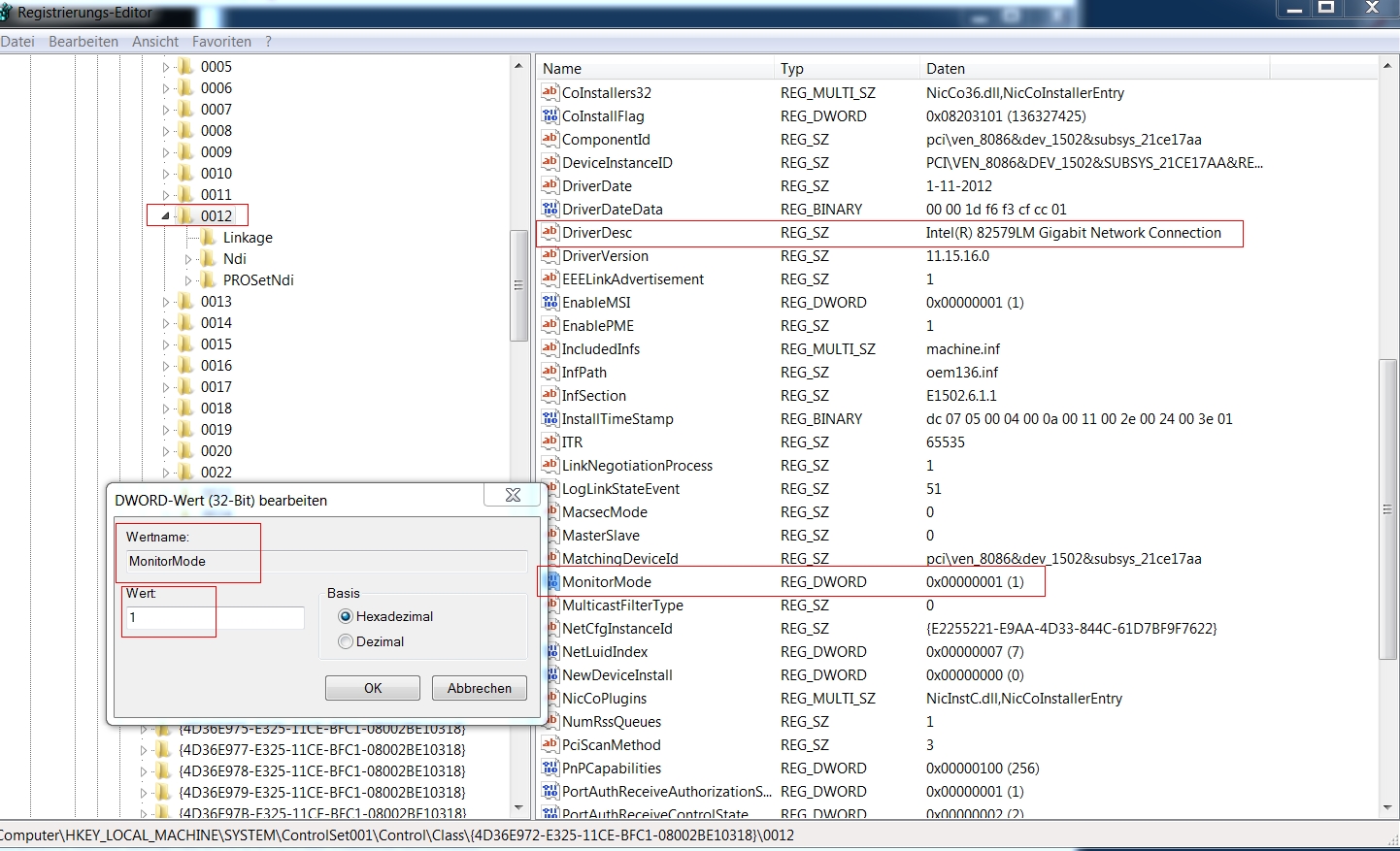

Here is what I then changed in my local Windows registry to solve it:
